Trigonometric Functions Calculator
Compute values for sine, cosine, tangent, cotangent, secant, and cosecant for any given angle.
Enter an angle, select its unit, choose the function, and click ‘Calculate’ to see the result.
Result
The Geometry of Cycles: Mastering Trigonometric Functions
Trigonometry is the mathematical bridge between linear dimensions and angular rotation. While simple arithmetic handles straight lines, the world we inhabit—from the orbit of planets to the oscillation of sound waves—is defined by cycles and curves.
This Trigonometric Functions Calculator is a computational engine designed to navigate the Unit Circle. Whether you are an architect calculating a roof pitch, a physicist modeling a pendulum, or a student solving for specific vector components, this tool provides the six precise ratios that define the relationship between an angle and the sides of a right triangle.

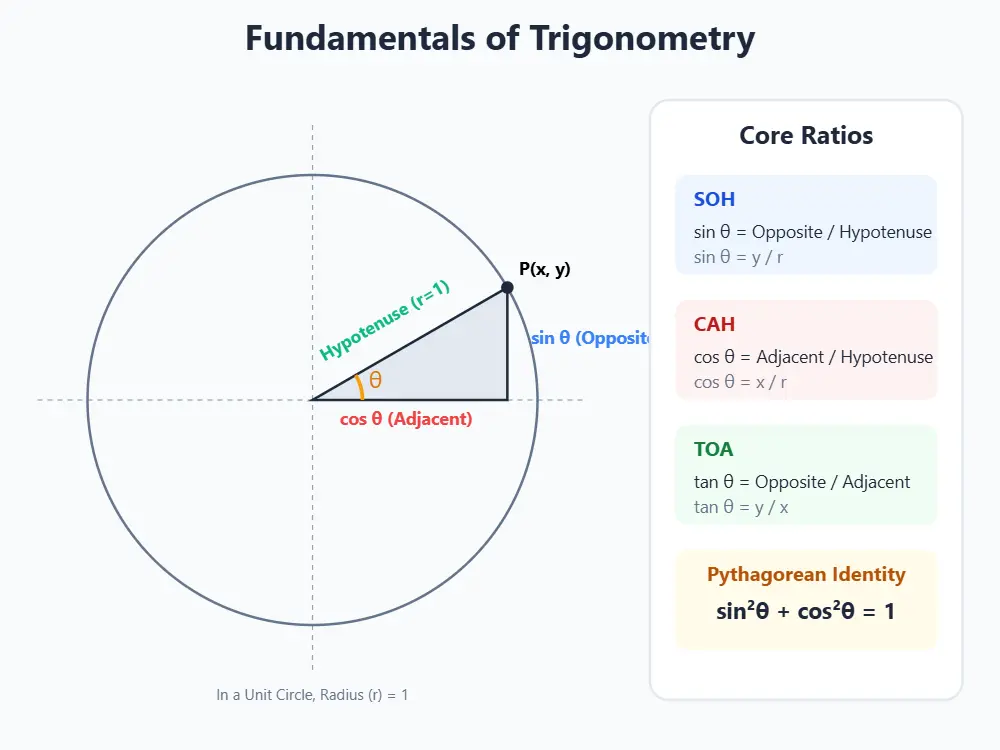

The Mathematical Model: The Unit Circle
To understand the outputs of this calculator, one must move beyond the basic triangle and visualize the Unit Circle.
Imagine a circle with a radius ($r$) of exactly 1, centered at the origin $(0,0)$ of a Cartesian graph. If you draw a line from the center to any point on the edge of the circle at an angle $\theta$:
- The Height ($y$-coordinate) of that point is exactly equal to $\sin(\theta)$.
- The Width ($x$-coordinate) of that point is exactly equal to $\cos(\theta)$.
- The Slope of the line connecting the origin to that point is $\tan(\theta)$.
This model explains why trigonometric functions can take negative values. An angle of $120^\circ$ places the point in the second quadrant, where the $x$-value (Cosine) is negative, but the $y$-value (Sine) remains positive.
The Primary Functions: SOH CAH TOA
The first three options in the calculator—Sine, Cosine, and Tangent—are the foundational pillars of trigonometry. They are best remembered by the mnemonic SOH CAH TOA, relating an angle $\theta$ to the side lengths of a right-angled triangle.
1. Sine ($\sin$)
Definition: The ratio of the Opposite side to the Hypotenuse.
$$\sin(\theta) = \frac{\text{Opposite}}{\text{Hypotenuse}}$$
- Behavior: Oscillates smoothly between -1 and 1. At $0^\circ$, Sine is 0. At $90^\circ$, it reaches its peak at 1.
2. Cosine ($\cos$)
Definition: The ratio of the Adjacent side to the Hypotenuse.
$$\cos(\theta) = \frac{\text{Adjacent}}{\text{Hypotenuse}}$$
- Behavior: The complement to Sine. At $0^\circ$, Cosine is 1 (maximum width). At $90^\circ$, it drops to 0.
3. Tangent ($\tan$)
Definition: The ratio of the Opposite side to the Adjacent side.
$$\tan(\theta) = \frac{\text{Opposite}}{\text{Adjacent}} = \frac{\sin(\theta)}{\cos(\theta)}$$
- Behavior: Represents the slope. Unlike Sine and Cosine, Tangent extends to infinity. At $45^\circ$, where the Opposite and Adjacent sides are equal, the Tangent is exactly 1.
The Reciprocal Functions
The calculator also computes the three reciprocal functions: Cosecant, Secant, and Cotangent. These are mathematically defined as $1$ divided by their primary counterparts. While less common in basic geometry, they are essential for calculus and solving complex trigonometric identities.
| Function | Symbol | Reciprocal of… | Formula |
| Cosecant | $\csc(\theta)$ | Sine | $\frac{1}{\sin(\theta)} = \frac{\text{Hypotenuse}}{\text{Opposite}}$ |
| Secant | $\sec(\theta)$ | Cosine | $\frac{1}{\cos(\theta)} = \frac{\text{Hypotenuse}}{\text{Adjacent}}$ |
| Cotangent | $\cot(\theta)$ | Tangent | $\frac{1}{\tan(\theta)} = \frac{\text{Adjacent}}{\text{Opposite}}$ |
Input Mode: Degrees vs. Radians
A critical feature of this calculator is the ability to toggle between Degrees and Radians. Using the wrong mode is the most common source of error in engineering and physics.
Degrees ($^\circ$)
This is the historical unit based on dividing a circle into 360 slices. It is intuitive for navigation, carpentry, and surveying.
- Full Circle: $360^\circ$
- Right Angle: $90^\circ$
Radians (rad)
This is the “natural” unit of mathematics. A radian is the angle formed when the arc length is equal to the radius. It relates the angle directly to $\pi$.
- Full Circle: $2\pi \text{ rad} \approx 6.283$
- Right Angle: $\frac{\pi}{2} \text{ rad} \approx 1.571$
Conversion Formula:
$$1 \text{ radian} = \frac{180^\circ}{\pi} \approx 57.296^\circ$$
Expert Tip: In calculus and computer programming (like JavaScript), trigonometric functions always expect inputs in Radians. This calculator automatically handles the conversion for you if you select “Degrees.”
Handling Singularities: When Math Breaks
You may notice that for certain inputs, the calculator returns “Undefined” or extremely large numbers. This occurs at Asymptotes.
Division by zero is mathematically undefined. Geometrically, this corresponds to a line pointing straight up; it has an infinite slope. The calculator detects these singularities (and those for $\sec$, $\csc$, and $\cot$) to prevent calculation errors.
Real-World Applications
1. Structural Engineering
The stability of a bridge relies on resolving forces into vertical and horizontal components.
- If a support cable is at an angle $\theta$, the vertical lifting force is calculated using Sine, and the horizontal tension is calculated using Cosine.
2. Video Game Development
Computers render 3D graphics using linear algebra and trigonometry.
- When a player looks around in a game, the camera’s new viewpoint is calculated using rotations matrices derived from Sine and Cosine.
3. Acoustics and Music
Sound is a wave. Audio engineers analyze frequencies using Fourier Transforms, which decompose complex sounds into sums of pure Sine and Cosine waves.
Frequently Asked Questions (FAQ)
Q: Why is $\sin^{-1}$ not the same as $\csc$?
A: This is a notation trap.
- $\sin^{-1}(x)$ refers to the Inverse Sine (Arcsin), which calculates an angle from a ratio.
- $(\sin(x))^{-1}$ or $1/\sin(x)$ refers to Cosecant ($\csc$), which is the reciprocal ratio.
- This calculator computes the Function values ($\sin, \csc$), not the Inverse functions.
Q: Why are the results decimals?
A: Trigonometric ratios are irrational numbers (with few exceptions).
- $\sin(30^\circ) = 0.5$ (Rational)
- $\sin(45^\circ) = \frac{\sqrt{2}}{2} \approx 0.7071…$ (Irrational)
- The calculator rounds these irrational values to the decimal places you specify for practical use.
Q: Can I input negative angles?
A: Yes. A negative angle implies rotation in the clockwise direction (opposite to standard convention).
- Even Functions: $\cos(-x) = \cos(x)$
- Odd Functions: $\sin(-x) = -\sin(x)$
- The calculator accurately reflects these symmetries.
Scientific Reference and Citation
For a deeper understanding of trigonometric definitions and the unit circle:
Source: Stewart, J. (2015). “Calculus: Early Transcendentals.” Cengage Learning.
Relevance: This is a standard university text that rigorously defines trigonometric functions using the unit circle approach and details their continuity, derivatives, and limits, validating the logic used in this computational tool.
