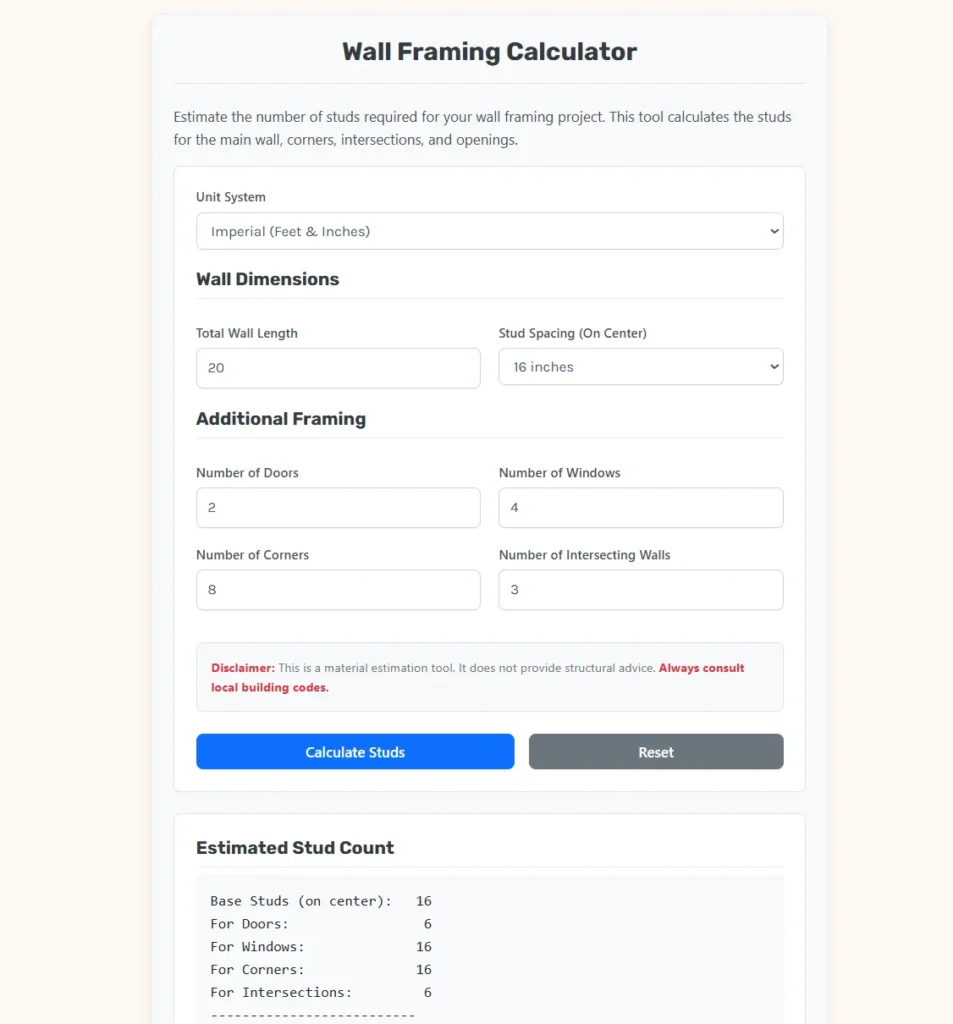

Wall Framing Calculator
Estimate the number of studs required for your wall framing project. This tool calculates the studs for the main wall, corners, intersections, and openings.
How Framing Studs Are Estimated
This calculator uses common rules of thumb to estimate the total number of vertical studs needed for your project.
- Base Studs: Calculated as one stud per foot of wall length. This is a simple, common method that provides a safe overage for standard 16-inch spacing.
- Openings (Doors & Windows): Each opening is framed with jack studs, king studs, a header, and a sill (for windows). This calculator adds 3 extra studs for each door and 4 extra studs for each window to account for this additional framing.
- Corners & Intersections: Building corners and where interior walls meet exterior walls requires extra studs for structural support and drywall backing. This estimate adds 2 extra studs for each corner or intersection.
- Plates: Don’t forget you will also need lumber for the horizontal top and bottom plates. A standard wall uses three plates (one bottom, two top) running the full length of the wall.
The Skeleton of the Structure: Wall Framing Estimation
In construction, the “framing” phase is where a building takes its shape. It is the structural skeleton that supports the roof, sheathing, and drywall. Estimating the lumber for this phase is a balancing act: order too little, and the crew stops working; order too much, and you waste budget on unreturnable cull lumber.
This Wall Framing Calculator acts as a specialized material take-off tool. It moves beyond the amateur “one stud per foot” rule of thumb, utilizing precise On-Center (OC) spacing calculations while accounting for the specific structural redundancy required at every window, door, and wall intersection.
The Mathematical Model: The Base Run
The core of the calculation deals with the uninterrupted wall. To determine the number of general field studs, the calculator uses the following logic:$$N_{base} = \lceil \frac{\text{Wall Length}}{\text{Spacing}} \rceil + 1$$
- Spacing: Typically 16 inches on center. This is the industry standard because 16 divides evenly into 48 inches (the width of a plywood sheet) and 96 inches (the length of a standard sheet of drywall).
- The “+1”: This accounts for the “Starter Stud” at the very beginning of the wall. If you have a wall where you place a stud every 16 inches, you need one at “Inch 0” to start the layout.
Accounting for Structural Interruptions
A wall is rarely a blank straight line. It has holes (doors/windows) and turns (corners). The calculator adds “Extra” studs for each of these to ensure structural integrity.
1. Windows (+4 Studs)
You cannot simply cut a stud to make a window hole; the weight of the roof above must be redirected around the opening.
- King Studs: Run from the bottom plate to the top plate on either side of the window.
- Jack (Trimmer) Studs: Sit inside the King studs to support the header.
- The Logic: The calculator adds 4 studs per window to account for these pairings. While some field studs are removed to make the hole, they are often cut up to become Cripple Studs (above and below the window), so the material count remains high.
2. Doors (+3 Studs)
Similar to windows, doors require a header supported by King and Jack studs. The calculator estimates 3 extra studs per door to cover the additional structural timber required to frame the opening robustly.
3. Corners and Intersections (+2 Studs)
Where two walls meet (a corner) or an interior wall butts into an exterior wall (an intersection/partition), you need extra wood not for structure, but for Drywall Backing.
- The Problem: If you just nail two 2x4s together at 90 degrees, there is no wood on the inside corner to screw the drywall into.
- The Solution: Framers build “Three-Stud Corners” (California Corners) or use partition backers (“Ladders”) to create a nailing surface. The calculator adds 2 studs per occurrence to account for this blocking.
16″ vs. 24″ Spacing: Advanced Framing
The calculator offers two primary spacing options for the Imperial system.
- 16″ OC: The gold standard. Required for load-bearing walls, multi-story homes, and areas with heavy snow or wind loads.
- 24″ OC: Often called “Advanced Framing” or “Optimum Value Engineering (OVE).” This uses less lumber (saving money) and allows for more insulation (saving energy). However, it often requires 2×6 studs rather than 2x4s and may not meet code for all load-bearing applications.
Plates: The Horizontal Factor
While this calculator focuses on vertical Studs, a complete wall estimate must include Plates.
A standard wall has three horizontal members running its full length:
- Bottom Plate (Sole Plate): Treated lumber anchored to the foundation.
- Top Plate: Nailing surface for the studs.
- Double Top Plate: A second interlocking layer to tie walls together and support joists.
Estimation Rule: Calculate the total linear feet of all walls and multiply by 3 to determine the linear footage of plate material needed.
Frequently Asked Questions (FAQ)
Q: Does this account for waste?
A: No. This is a net calculation. Lumber quality varies; some boards will be warped, split, or bowed (“cull lumber”). Professional framers typically add a 10% to 15% Waste Factor to this calculator’s result to ensure they don’t run short.
Q: Why “King” and “Jack” studs?
A: These terms define the hierarchy of support. The “King” stands tall (full height), while the “Jack” does the heavy lifting (supporting the header beam).
Q: Can I use this for non-load-bearing walls?
A: Yes. For interior partition walls that don’t hold up the roof, you can safely use the calculated numbers. You might even opt for 24″ spacing to save money, as the wall only needs to support the weight of the drywall.
Scientific Reference and Citation
For the official codes governing wall construction and stud spacing:
Source: International Code Council (ICC). “2021 International Residential Code (IRC) – Chapter 6: Wall Construction.”
Relevance: This is the model building code used by most jurisdictions in the United States. It explicitly defines the maximum spacing for studs (Table R602.3(5)) based on stud size and building height, serving as the legal basis for the logic used in this tool.
